I thought I would upload an easy way to install an on/off switch for the head-light. The reason I have done this is because the Cobra websites way is absolute hogwash (in my books). It gets the blue wires the wrong way on the switch in the diagram given. Also they ''butcher'' the main wiring harness?
Rather than confuse people or make things harder than needed, I have simplified this. It has now been tested so you should have no drama's.
First find the 9-pin connector- You will find this under the fuel tank.
Now cut the yellow wire with a red stripe.
Okay now that you have one end of the cut wire (yellow with a red stripe) to the feed wire at the the switch & the other cut end to the second switch wire you should fit the switch in a good place & re-fit the tank etc..
For anyone wanting other components to turn off with the headlight switch, you will need to disconnect the lighting component & run power from the headlight switch (not on the power feed side).
The diagram below may help you understand how it works.
-- Edited by TT-R250M on Saturday 23rd of March 2013 01:40:30 PM
__________________
2000 TT-R250M-
Spoiler
Ported & polished, 73mm bore, Wizeco piston, US header pipe, FMF Q4, #150 main jet, #52.5 pilot jet, throttle stop screw adjusted, larger snorkel, GYT-R air filter, NGK Iridium spark plug, 14/51 gearing, NOS +
That's excellent Jarrah - thank you very much. I have deleted the old thread to save any possible confusion.
If you have a spare small terminal that fits into the CDi, could you possibly put a pic of both sides of it up here please to help identify it?
Can I clarify a couple of points please?
1. Is the spare pin that you use on the CDi only live when the ignition is switched on? I am pretty sure that it is from your description and,if the new wire is fitted, it would be an ideal source of power for handlebar accessories such as GPS, chargers, etc.
2. Does the red/yellow wire from the 9-pin connector under the tank feed all the lights front and rear? The colours on my manual don't correspond and don't include the 9-pin connector
Many thanks again for taking the time to re-write the guide - most appreciated
I just tried this & it was easier than I thought. The headlight switch does not affect the tail-light or ilumination instrument so you can fit this without running wires from the CDi. I think that I got a little mixed up with the ''Fitting additional lights & components'' thread when I wrote this, either that or I was trying to follow Cobra's version (good excuse I know) lol . At the time I did not have my bike together to test this but rest assured that it has been tested now
__________________
2000 TT-R250M-
Spoiler
Ported & polished, 73mm bore, Wizeco piston, US header pipe, FMF Q4, #150 main jet, #52.5 pilot jet, throttle stop screw adjusted, larger snorkel, GYT-R air filter, NGK Iridium spark plug, 14/51 gearing, NOS +
That really is simple Jarrah! It takes a big man to admit a mistake
I have been thinking about this. If an owner just wants the headlight off then an even simpler method would be to cut the dip beam wire which runs to the actual headlight bulb and run it back through a switch. To achieve the"headlight off" mode, run the bike in daylight on dip beam with the switch "off". Put the switch to "on" and you have both dip and main back in action for night-time riding. The advantage I see for this is that you don't even have to take the tank off - call me lazy if you like
Does anyone know off-hand which is the dip wire - yellow or green - please?
Not quite sure what you mean Brian, but from looking at the high/low switch The yellow is high beam, the green is low beam, the yellow with a red stripe is the main feed wire. If you fit the switch on the feed wire you will be able to turn the headlights off/on. If you use the yellow or green wire to fit a switch it will only turn off when you turn it to high or low, depending on which wire used.
All this said, you would be better of using the yellow wire with the red stripe so you can turn them off without having to touch the low/high beam switch.
__________________
2000 TT-R250M-
Spoiler
Ported & polished, 73mm bore, Wizeco piston, US header pipe, FMF Q4, #150 main jet, #52.5 pilot jet, throttle stop screw adjusted, larger snorkel, GYT-R air filter, NGK Iridium spark plug, 14/51 gearing, NOS +
I had the tank off to check the valve clearances and it was easy enough to tap into the red/yellow wire so I decided to fit a light switch. The switch I used (see here) has long enough leads to reach the 9-pin connector which made life easier.
I run heated grips and a GPS so think that it is probably worthwhile being able to switch the headlight off. A few extra amps to the heated grips won't go amiss in the weather we are experiencing at the moment. Spring has arrived apparently but you wouldn't know it

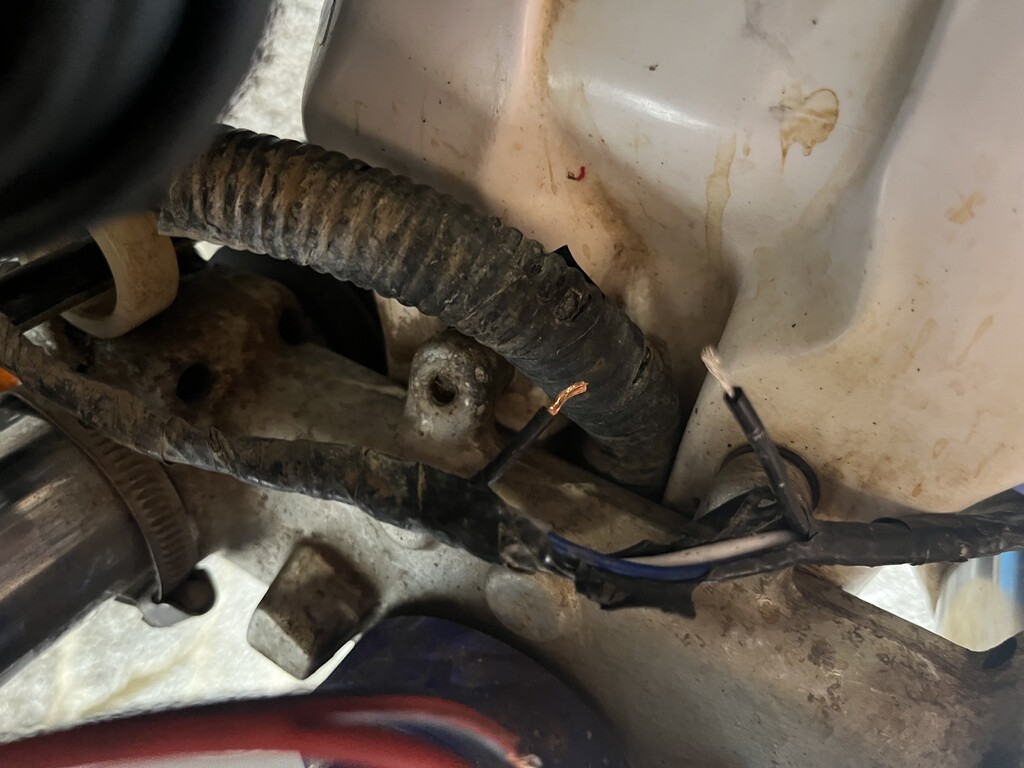

I cut the red/yellow wire and double checked and, yes, both headlight beams were off and everything else, including the parking light, stayed on
I remembered to slip some heat shrink tube over the switch wires well out of the way of where I was going to solder.
My soldering isn't brilliant but the joints were strong enough so that was the trickiest bit of the job done!
All back together and the switch did what it was supposed to do - phew!
The switch was easy enough to fit and I like the "idiot" on/off markings as I get easily confused
Even easier, just fit a switch in the earth wire at the headlight, I mounted my switch on the headlight cowl.
Yes Brian; GPS, grips and headlight will compromise the battery - last year whilst crossing a mountain range near Irkutsk in poor weather and slow traffic, I wondered why the horn did not work, found out next morning when I had to use kickstart!!!!!!!!! although the battery soon returned to full charge in good conditions.
so could you use one switch to turn off the headlight and tail light or would you need 2
You could use one switch, provided that you run a wire from the brake light wire (yellow wire leading from the harness side) to the power feed side of the switch. Then splice/join it to the headlight wire that you cut (Yellow with a red stripe) and the switch power feed wire. You will then need to run a wire back to the brake light (yellow wire leading from rear fender) from the other side of the switch.
Jarrah
__________________
2000 TT-R250M-
Spoiler
Ported & polished, 73mm bore, Wizeco piston, US header pipe, FMF Q4, #150 main jet, #52.5 pilot jet, throttle stop screw adjusted, larger snorkel, GYT-R air filter, NGK Iridium spark plug, 14/51 gearing, NOS +

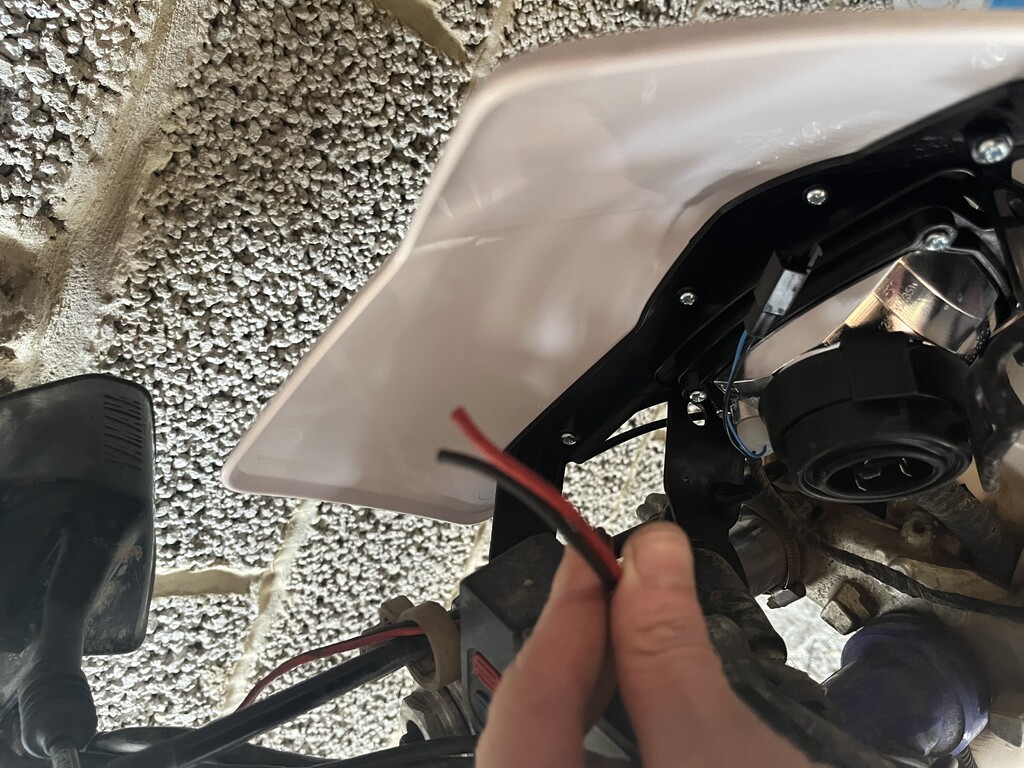

I just added a switch between in the feed to the low-beam element all wired inside the cover of the lamp and without needing to cut any wiring. That way, with the switch off, only the side-lights illuminate (front & rear), but the main-beam switch still operates the hi-beam, so I can flash traffic if necessary. In my opinion, having a couple of 5W lamps illuminated in the event that I kill the engine but leave the ignition on isn't such a risk for flattening the battery than leaving 25W+5W+5W of dip, and 2 side lights.
I just added a switch between in the feed to the low-beam element all wired inside the cover of the lamp and without needing to cut any wiring. That way, with the switch off, only the side-lights illuminate (front & rear), but the main-beam switch still operates the hi-beam, so I can flash traffic if necessary. In my opinion, having a couple of 5W lamps illuminated in the event that I kill the engine but leave the ignition on isn't such a risk for flattening the battery than leaving 25W+5W+5W of dip, and 2 side lights.
Simon
Nice one Simon! I used to run a headlight bulb with a blown dip beam which gave a similar result - in the daytime....
You don't actual have to cut the wiring as in my thread, that is just for the unexperienced. If you don't want to cut it, you can unplug the yellow wire with a red stripe by sticking a needle (or similar) down the side of the clip. It has a lock release tab on the one side of the connector. You then need a female connector that fits into the connector block to replace the yellow wire with a red stripe that you removed, and a male spade connector to join the yellow wire with a red stripe.
Jarrah
__________________
2000 TT-R250M-
Spoiler
Ported & polished, 73mm bore, Wizeco piston, US header pipe, FMF Q4, #150 main jet, #52.5 pilot jet, throttle stop screw adjusted, larger snorkel, GYT-R air filter, NGK Iridium spark plug, 14/51 gearing, NOS +
I happened to find a left hand switchgear for a TDR250 (that's not a spelling error, old 250 2smoke) which is identical to a Raid/OE switch except it has a lights-off switch in place of the hazard lights switch. This got me pondering the possibility of using the hazards switch to turn off the lights instead of having another switch on the bars...
Well it took me half a day of head scratching before I took the plunge:
This is the hazard warning light switch backplate removed from it's housing and snipped free. Light brown and white=power in, brown and dark green wires feed the left and right indicators simultaneously when switched on.
If you're pulling these bits apart for the first time, I recommend you take pictures before every step. It's a bit of a 3D jigsaw putting it all back together and it's not always obvious where bits go!
The dark green and the brown are connected to wires of the same colour coming from the indicator switch, some way down the sheathed loom. (That's Yamaha dodgy insulating tape, not mine!)
I cut these bits off.
Next step I have to describe 'cause I forgot to take any more pictures - concentrating too hard!
The dip/main beam switch has three wires to it. The yellow/red is the power in and the switch diverts it to dip or main filament in the bulb. I cut the yellow/red, and soldered one end to the tail of the light brown/white wire, and the other to the tail of the dark green wire. Hey presto, headlights on/off switch!
Feeling confident, I found a bit of blue wire and pushed it through the sheath from plug to switch and soldered one end to the tail of the dark brown wire, then put the switch back together before I knocked all the little screws and backplates onto the floor, again!
The other end of the blue wire goes direct to the tail light instead of the permanent feed (more or less as described earlier in this thread) so the tail light goes on and off with the headlight.
Being real flash, I happened to have the right sort of terminals to fit in the multiplug, so I used the spare space in the multiplug to run the blue wire (as indeed the TDR does) so it all looks factory fitted.
Job done. Just need to modify the signage on the switch from hazard triangle to headlights...
The TDR switch would have plugged straight in, but the loom is about 9" too short so I'd have had to lengthen all 9 wires, but wouldn't have had to strip the switch at all.
-- Edited by mossproof on Saturday 2nd of March 2019 10:00:35 PM
Great job Simon - very impressive - a man after my own heart
Just a thought on switching off the lights. The TTR alternator chucks out quite a wattage - would the spare current just be turned to heat at the regulator? Not very good at electrics other than tidying up wires and connectors
Great job Simon - very impressive - a man after my own heart
Just a thought on switching off the lights. The TTR alternator chucks out quite a wattage - would the spare current just be turned to heat at the regulator? Not very good at electrics other than tidying up wires and connectors
Brian
As it's a Perminent magnet alternator the regulator shunts any saved current to earth.(total loss system)
Unlike cars where the magnetic field Is turned off and on to vary voltage and current
Turning off the light makes the reg run a bit hotter
Better to use the saved power elsewhere like heated grips
I went led everywhere and freed up out put for the heated grips
