Speedo magnet
Permalink


Hi all I'm after a magnet that goes on the end of the front sprocket that makes the digital pick up work then hopefully my speedo will come to life. Thought I'd try on here first as they are quite expensive for a new one





__________________

1996 (N reg)Yamaha TTR 250
robs


Senior Member

Status: Offline
Posts: 200
Date:
Permalink


Hey Martin,

Just look up neodymium magnets on ebay or amazon. They're basically just extremely strong magnets. Should work and pretty cheap.

Cheers,

__________________
Martinm


Veteran Member

Status: Offline
Posts: 87
Date:
Permalink


That would be ideal if it works have you tried this,
Could you or anyone else give me some dimensions of the magnet that I would need to order

__________________

1996 (N reg)Yamaha TTR 250
TTRfan


Super Guru

Status: Offline
Posts: 8606
Date:
Permalink


All explained by Sergey in para c here http://www.ttr250.com/#More_speedo_information



__________________

Exeter, Devon, UK

http://www.ttr250.com  - The one and only dedicated TTR250 FAQ!

TIP: For easy viewing bookmark the "Recent Posts" view - http://ttr250.activeboard.com/p/recent/
Martinm


Veteran Member

Status: Offline
Posts: 87
Date:
Permalink


Screenshot_20181125_164628_com.ebay.mobile.jpg would these work if I drilled the centre out or does there need to be a brake in the magnet



Attachments
__________________

1996 (N reg)Yamaha TTR 250
Martinm


Veteran Member

Status: Offline
Posts: 87
Date:
Permalink

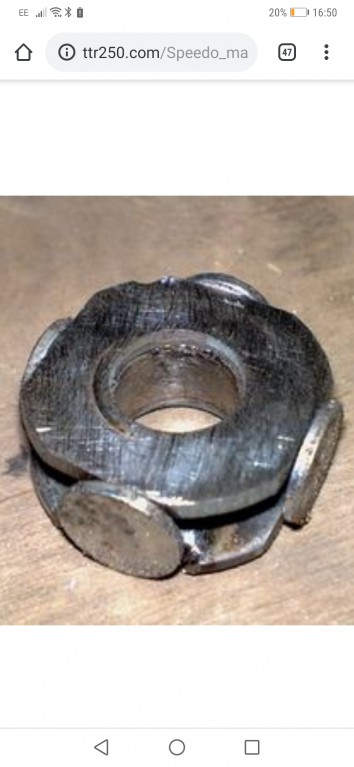

Screenshot_20181125_165038_com.android.chrome.jpgif it's got to be done like this can I weld the magnet to the washers (are the magnets weld able)



Attachments
__________________

1996 (N reg)Yamaha TTR 250
mossproof


Super Guru

Status: Offline
Posts: 1433
Date:
Permalink


Save yourself the hassle:

totallyttrs.com/epages/699105d9-e4cc-4b32-b236-84e72cd67f84.sf/en_GB/

You can weld neodymium magnets, but once the coating has been damaged they corrode and the magnetic field weakens rapidly. A circular magnet such as the one in your pic will not have the correct field. You need alternating north south north south radiating out at 90 degrees to the axis, (for the Hall sensor to read as the magnet spins) rather than a north and south in the direction of the axis which is what you get in the Polo mint magnet. (The field will not change relative to the sensor as the magnet spins)



-- Edited by mossproof on Sunday 25th of November 2018 08:50:22 PM

__________________
Martinm


Veteran Member

Status: Offline
Posts: 87
Date:
Permalink


That's for an exchange I haven't got one to exchange


__________________

1996 (N reg)Yamaha TTR 250
JOHNYBOY


Super Guru

Status: Offline
Posts: 1097
Date:
Permalink


just pop into our ttr steve he will be able to sort you out saves postage

__________________
mossproof


Super Guru

Status: Offline
Posts: 1433
Date:
Permalink


No John - he hasn't got one to exchange. Steve needs old units in exchange to recondition.

__________________
ttr steve


Super Guru

Status: Offline
Posts: 2679
Date:
Permalink


I have new oneswink and think I may have a spare used one somewhere????



__________________

totallyttrs.com


Martinm


Veteran Member

Status: Offline
Posts: 87
Date:
Permalink


Hi Steve if you have got a second hand 1 that would be grate ill put a little order in, just doing final bits for mot



-- Edited by Martinm on Monday 26th of November 2018 12:49:42 PM

__________________

1996 (N reg)Yamaha TTR 250
ttr steve


Super Guru

Status: Offline
Posts: 2679
Date:
Permalink


Yep I have one, just send me an email about cost please sales@totallyttrs.com

Cheers

Steve



__________________

totallyttrs.com


Martinm


Veteran Member

Status: Offline
Posts: 87
Date:
Permalink


Ideal thanks Steve
